Helping Fuel Experimental Aircraft Innovation for Over 40 Years
Built to a Higher Standard
AS9100
Every process controlled, documented, and repeatable
Certified to Produce
FAA Part 21
Manufacturing approved for certified aircraft parts
Certified to Stand Behind It
FAA Repair Station
Inspect, repair, and return components to service
Where It Happens
10,000 Sq Ft Facility
Based at KSPA. Engineering, manufacturing, and service under one roof
Your Fuel System Leader

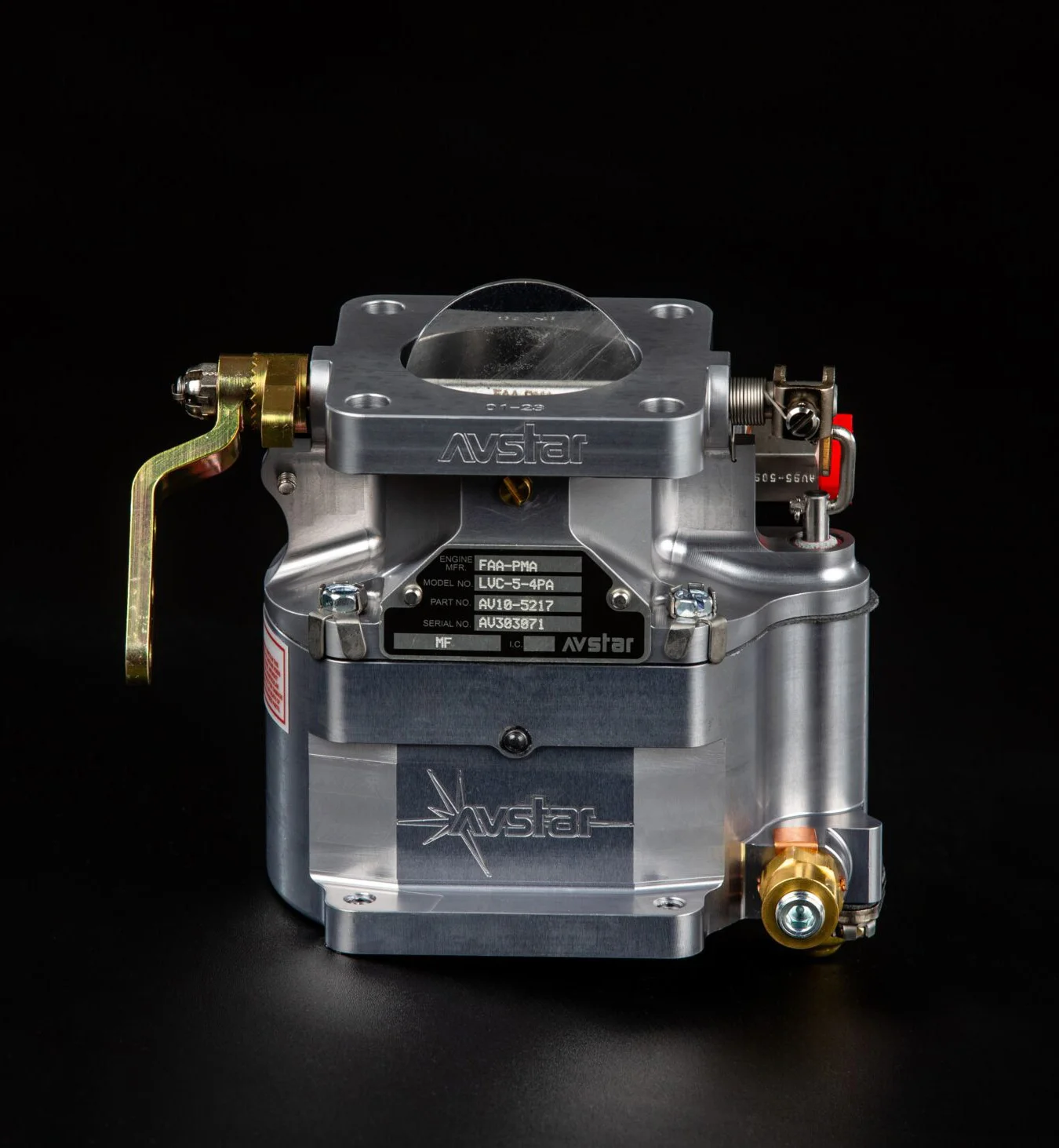

Carburetors
Improves Flight Safety • Lower Operating Cost • Superior Quality
Newer, Robust Gasket Material
- Eliminates legacy gasket relaxation causing body-to-bowl fuel leaks (For more information see Service Bulletin MSA SB-17 & Lycoming SB 366B)
Increased Float Clearance in Bowl
- Larger machined cavity allowing more clearance preventing floats from sticking (For more information see Service Bulletin MSA SB-4)
- Increased fluid volume for optimal upper range performance
Stronger & Lighter Main Body Material
- AL 6061-T6 Billet Machined Throttle Body to Bowl
- 66% higher yield strength over legacy cast material
- Eliminates drain plug thread deterioriation causing leaks
- Legacy castings are prone to cracks and porosity
- AVStar’s carburetors average a 15% reduction in weight by design resulting in lower operating costs
Corrosion Resistance
- Fully anodized billets have much higher corrosion resistance than legacy castings
- More stainless components in each fuel system
Performance
- Billet machined venturi’s for improved and consistent air flows
- Improved mixture cut-off sealing
- Optimized air fuel metering using advanced fluid dynamic analysis validated by the world’s largest piston engine manufacturer, Lycoming Engines

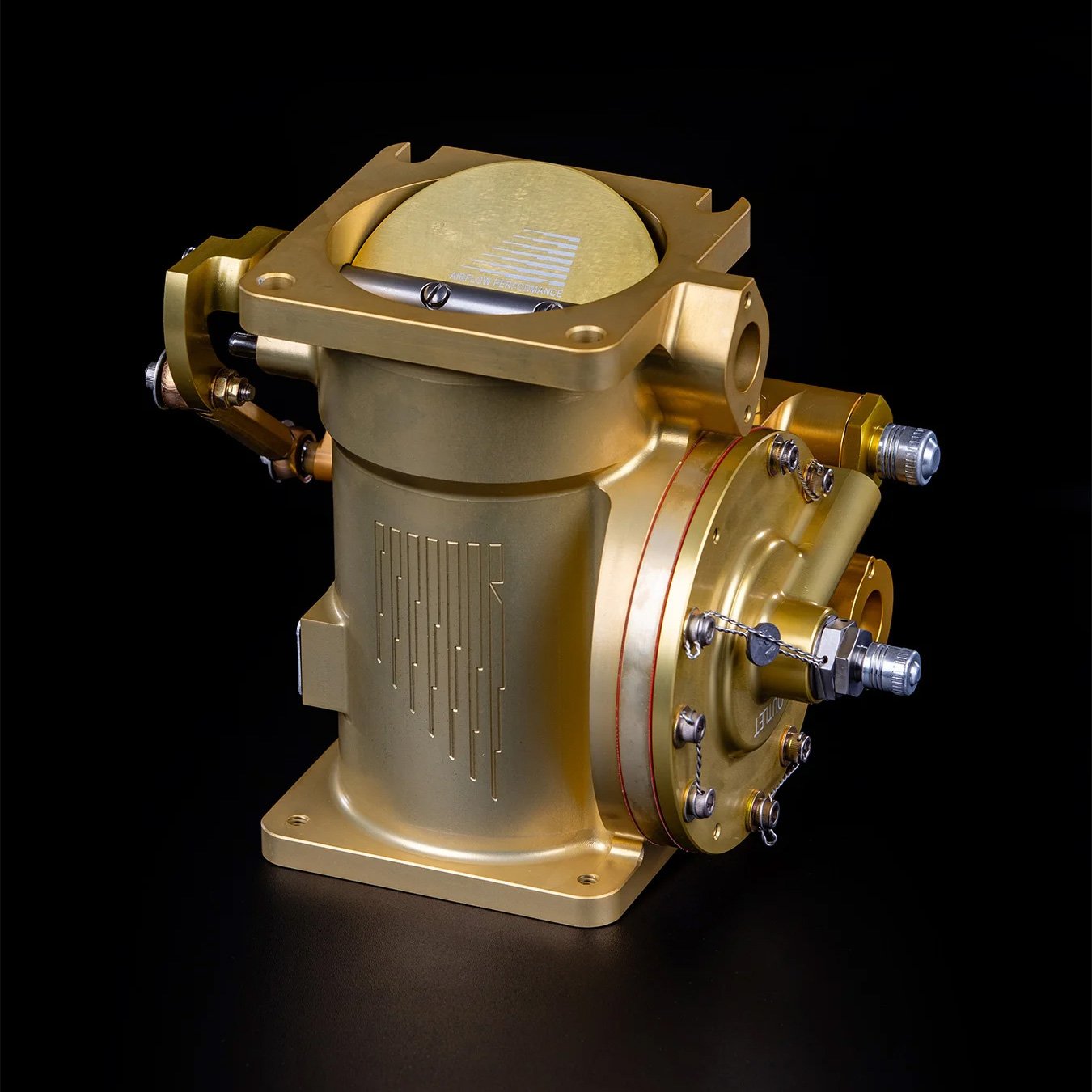

Fuel Injectors
Improves Flight Safety • Lower Operating Cost • Superior Quality
Stronger & Lighter Main Body Material
- AL 6061-T6 Billet Machined Throttle Body to Bowl
- 66% higher yield strength over legacy cast material
- Eliminates plug thread deterioration causing leaks
- Legacy castings are prone to cracks and porosity
- Airflow Fuel Systems average a 15% reduction in weight by design resulting in lower operating costs
Corrosion Resistance
- Fully anodized billets have much higher corrosion resistance than legacy castings
- More stainless components in each fuel system
- Consistent Air Fuel Ratio Performance
- Billet machined venturi’s for improved and consistent air flow
- Optimized air fuel metering using advanced fluid dynamic analysis
Diagnostic Innovations

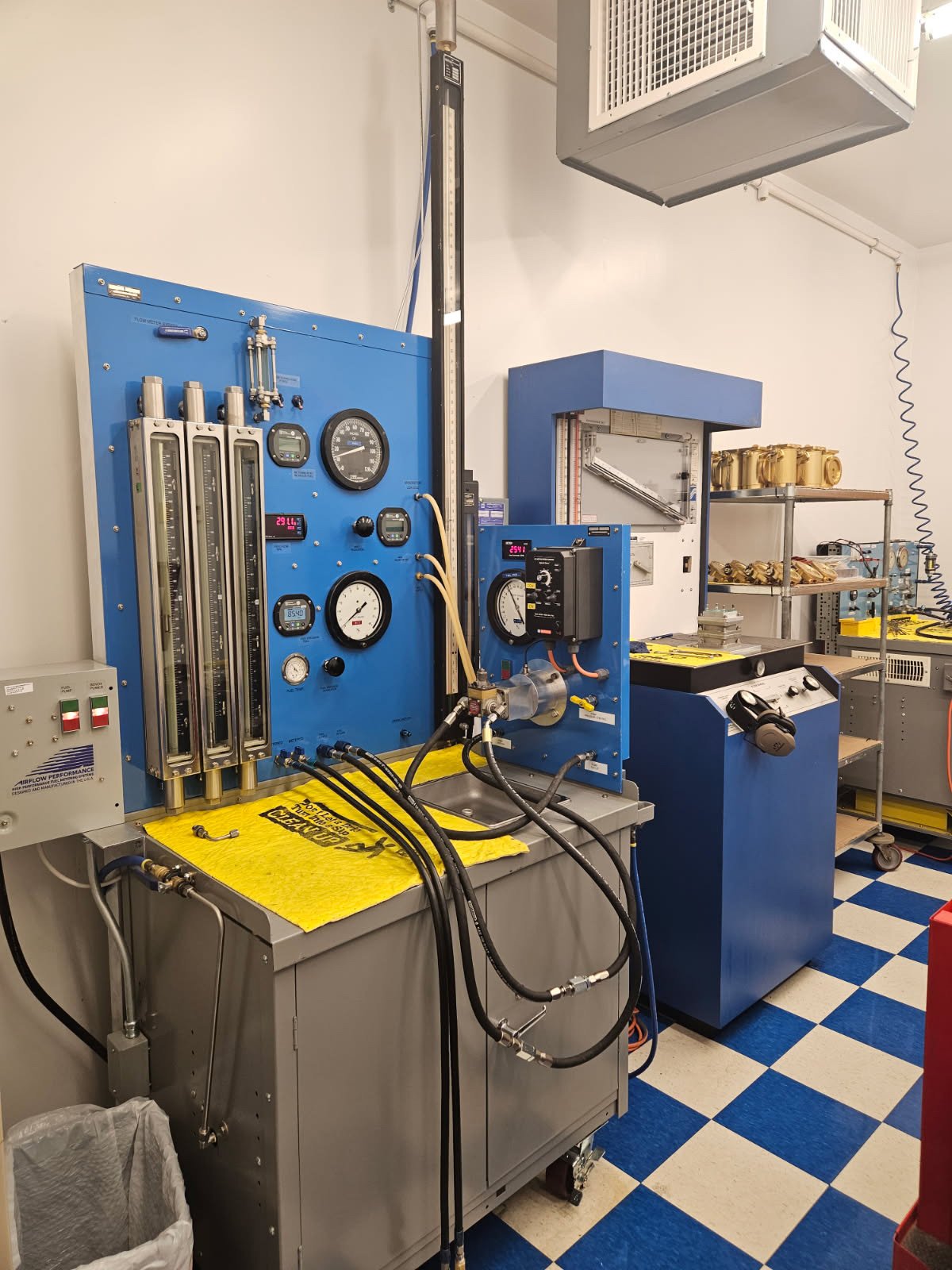

Digital Flow Bench: Precision Testing for Superior Performance
- At Airflow, innovation drives our commitment to excellence. Our digital flow bench ensures the reliability and precision of every fuel system we produce.
Key Highlights of the Airflow Flow Bench:
Accurate Performance Validation
- Simulates real-world engine conditions to rigorously test fuel system performance.
- Ensures consistent fuel delivery for optimal engine efficiency.
Advanced Diagnostic Capabilities
- Detects and resolves potential irregularities before systems leave our facility.
- Provides precise flow rate and pressure measurements for ultimate quality assurance.
Cutting-Edge Technology
- Eliminates anomalies that traditional flow benches alone cannot identify
Commitment to Quality
- Each fuel system undergoes a comprehensive final test to meet our stringent standards.
- Minimizes downtime and enhances safety by guaranteeing dependable performance.
Sustainability and Efficiency
- Reduces waste through meticulous testing and adjustment.
- Optimized processes ensure environmental responsibility without compromising accuracy.
